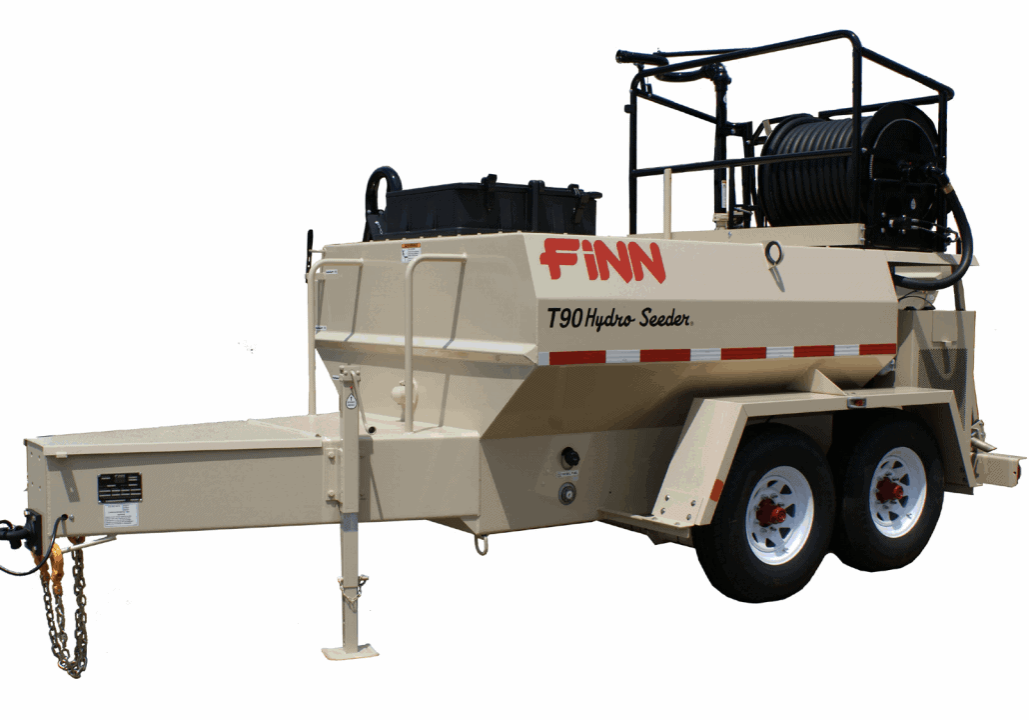

T90 HydroSeeder®

The FINN T90 offers the ultimate in performance features and operator conveniences that you’d expect from the industry leader in hydroseeding quality and innovation. With superior technology and extensive research, the T90 HydroSeeder is the ultimate 800 gallon working tank capacity for the mid-size hydroseeding projects.

Screen Shot 2020-09-29 at 10.22.32 AM

Loads per Acre
3.75

Working Weight
15,115 lbs. (6,856 kg)

Power
Yanmar 3TNV88C-DYEM, 35.1hp (26.2kw), 3 cylinder water cooled diesel engine. Tier 4Final. 1.642L

Tank Size
800 gallon (3,028 L) work capacity / 940 gallon (3,558 L) liquid capacity

Pump
Centrifugal 4" x 2" (10 cm x 5 cm) 170 gpm @ 100 psi (689 kPa) (646 lpm @ 7 kg/cm2 ), 3/4" (1.9 cm) solid clearance, external adjustment

Discharge Distance
Up to 180 feet (55 m) from end of discharge tower

Features & Benefits

  • 800 gallon working capacity tank
  • Tier 4 Final Yanmar 3TNV88C-DYEM, 35.1hp (26.2kw), 3 cylinder water-cooled diesel engine
  • Sleek tank design provides a smooth slurry flow pattern from the beginning to the end of the load
  • Optimum mixing capabilities featuring hydraulically controlled paddle agitation and liquid recirculation with convenient operator controls at both the front and rear of the unit
  • Large loading hatch located at the front of the unit allowing material to be loaded from the tow vehicle while standing securely on the hitch platform
  • FINN designed centrifugal pump driven by an in-line common shaft clutch with no high-cost maintenance couplings, drive belts or hydraulic components
  • Agitator and pump are independently driven allowing complete mixing of the slurry without pump operation enhancing mechanical longevity and flexibility during operation
  • Independent torsion suspension axles equipped with electric brakes for better control
  • Heavy-duty truck wheels with standard highway-rated tires for solid stability on uneven terrain
  • Discharge distance up to 180 feet from end of the tower
