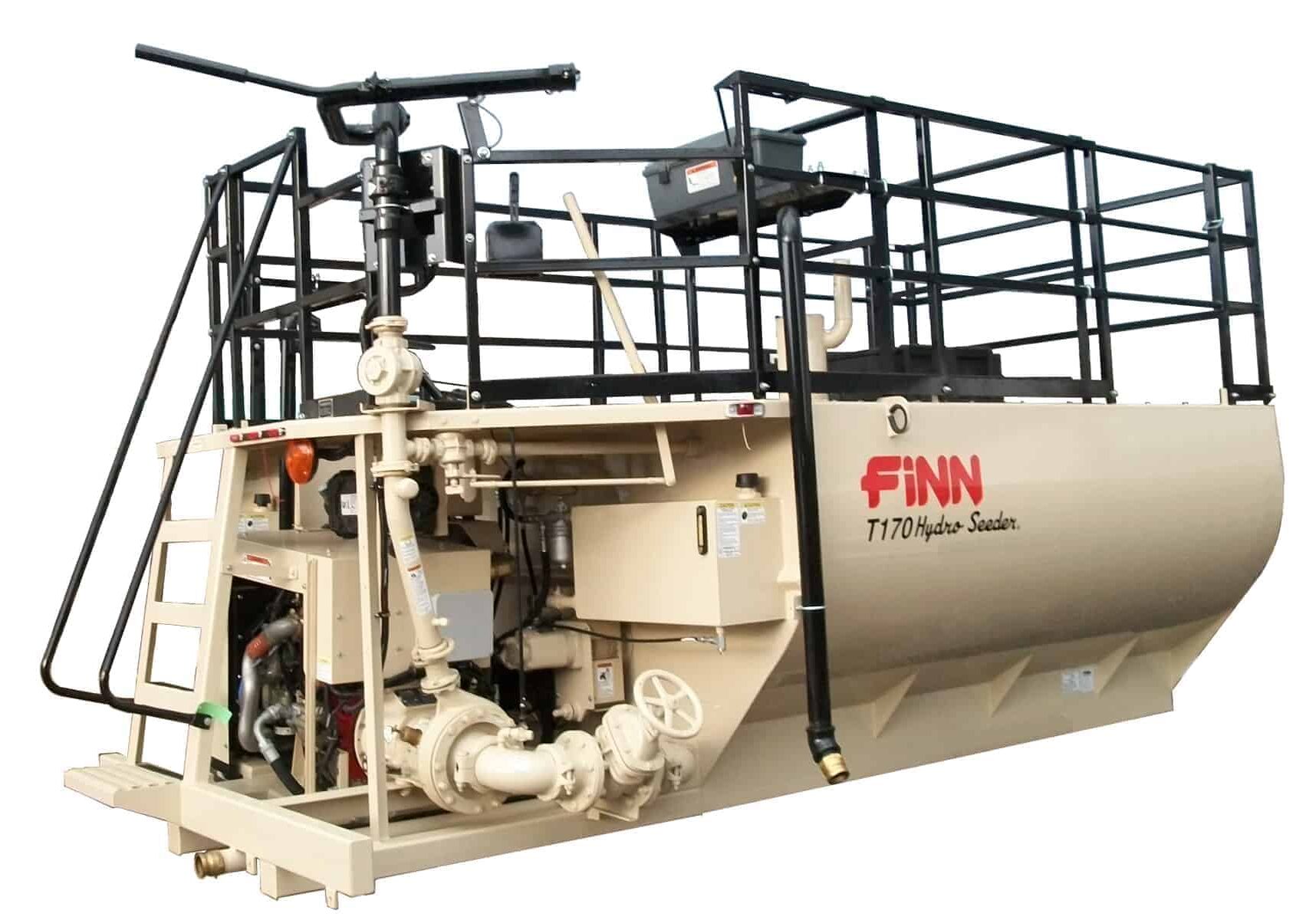

T170 HydroSeeder®

The FINN T170 brings a robust 1,500 gallon working tank capacity to tackle a wide array of projects with this economical, highly productive machine. The T170 is a state-of-the-art HydroSeeder offering the best value for your investment. The efficiency of operation, high production capabilities and low maintenance requirements make the T170 perfect for all mid-size to large work sites.

T170-ML-image

Loads per Acre
2

Working Weight
24,300 lbs. (11,022 kg)

Power
Cummins QSF 2.8 Diesel Tier 4F, 65hp (48 kW), with over-center clutch. Vibration isolated. Controls include: clutch, agitator direction and speed, discharge boom and recirculation control valves, engine throttle, safety horn, and engine start/stop

Tank Size
1,500 gal. (5,678 L) work cap. / 1,750 gal. (6,625 L) liquid cap.

Pump
Centrifugal 4” x 2” (10.2 cm x 5 cm), 320 GPM @ 115 psi (1,210 lpm @ 792 kPa), 1” (2.54 cm) solid clearance

Discharge Distance
Up to 200 ft. (61 m) from discharge tower

Features & Benefits

  • 1,500 gallon working capacity tank
  • Tier 4 Final compliant with a Cummins QSF 2.8 Diesel Tier 4F, 65hp (48 kW)
  • Larger straight line discharge piping improves slurry flow resulting in higher output, pressure and greater slurry discharge distance
  • Optimum mixing capabilities featuring hydraulically controlled paddle agitation and liquid recirculation
  • Features the time-tested and field proven “clump” technology integrating a single shaft design of the clutch/pump to maximize mechanical efficiency
  • Agitator and pump are independently driven allowing complete mixing of the slurry without pump operation enhancing mechanical longevity and flexibility during operation
  • Relocated discharge boom to a more centralized location increasing operator comfort and rear sweeping pattern
  • Centralized control panel integrates into the discharge boom mount with a digital control screen as well as engine start/stop, throttle switch, safety horn and e-stop
  • Newly designed loading hatch with a larger opening and rotated lid enables more efficient loading, and includes a stainless steel bag cutter
  • Operator platform and access ladder are perfect for improved comfort and accessibility
  • Relocated fill port for sump filling and a heavy-duty suction line gate valve
  • Discharge distance up to 200 feet from end of the tower
